You can detect an FPV drone before you can see it. The motors and props throw off a characteristic whine — a blade-pass fundamental and its harmonics — sitting right in the 300–4000 Hz band. So a natural question: if I wanted to detect and classify drones acoustically with a small array of microphones, what shape should that array be?

I spent a weekend reading the literature and simulating the alternatives. This post walks through the physics that constrains the design, compares the usual geometries with simulated response curves, and lands on a recommendation. The target: 16 microphones, the 300–4000 Hz band, and an algorithm that processes all 16 channels at once on an edge accelerator (Hailo / Jetson) — not necessarily classical "beamform-then-detect."

What the research says: algorithms and array shapes

Two bodies of work bear on this design — how people classify drone audio, and how people shape the array.

Detecting and classifying drone audio. A good map of the field is this 2025 holistic review of acoustic UAV detection. It splits into three generations:

  1. Classical signal processing. A drone emits a quasi-periodic harmonic comb (blade-pass fundamental plus harmonics), so early detectors used harmonic-line and spectral-correlation detectors, matched filters, and energy thresholds. Cheap and interpretable, but brittle to wind and to harmonics that drift with throttle.
  2. Feature-engineered ML. Extract MFCCs / spectral statistics and classify with SVM, kNN, or random forests. A cubic-kernel SVM on MFCCs reaches ~96.7% accuracy — very light to run, but dependent on hand-chosen features.
  3. Deep learning on spectrograms. CNNs, RNNs, and CRNNs over Mel/STFT spectrograms now dominate; across studies CNN ≈ CRNN > RNN, with STFT-CNN detection above 98% and hybrid MFCC+STFT CNNs around 98.5%. Data scarcity is patched with GAN-synthesised audio, and recent work pushes into drone-type recognition (AUDRON).

One-step vs multi-step is exactly the sound-event-localization-and-detection (SELD) question:

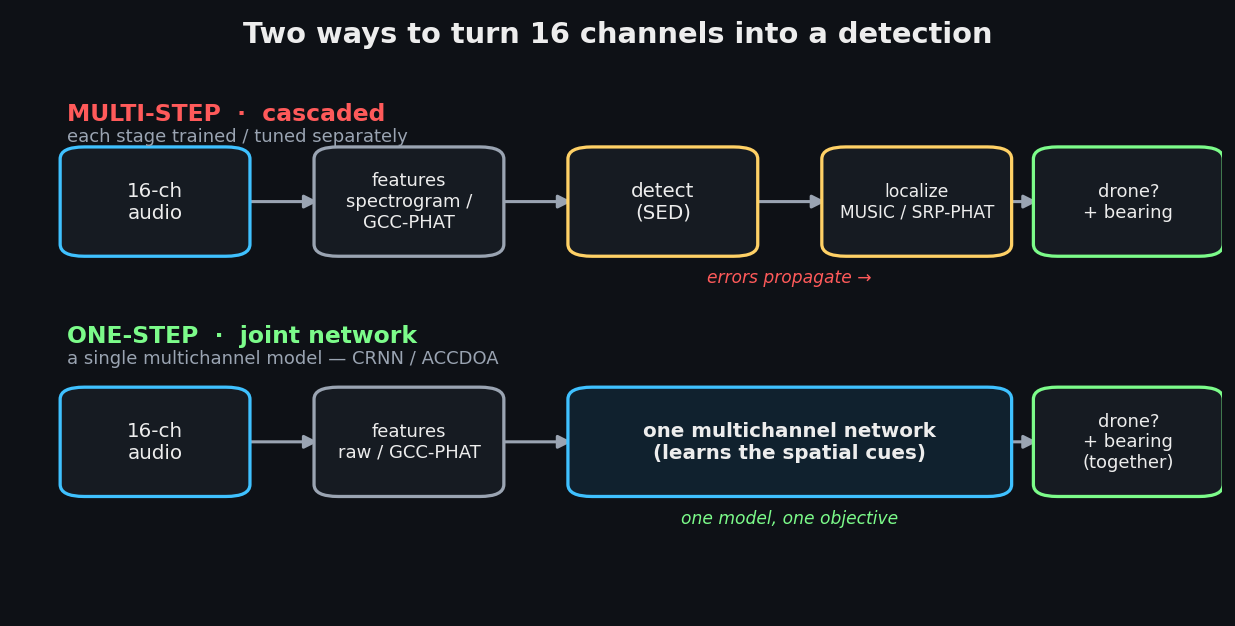

  • Multi-step / cascaded — detect-then-classify, or estimate direction with a classical method (MUSIC, SRP-PHAT, beamforming) and feed a separate detector; in SELD, train detection first and transfer those weights to a direction model. Each stage is simple and swappable, but errors propagate and the pipeline is fiddly.
  • One-step / joint — a single multichannel network takes raw channels or GCC-PHAT features and emits detection (and optionally direction) together. The CRNN is the canonical SELD backbone, and the ACCDOA formulation folds detection and direction into a single regression target. UAV-specific instances include real-time joint detect-and-localize systems and a U-Net over dense beamformed energy maps.
  • Verdict — joint models win on deployment simplicity; a few studies find cascaded better when detection and localization differ greatly in difficulty, at the cost of training complexity. For a 16-channel edge detector, a joint CRNN / ACCDOA-style network fed GCC-PHAT is the well-supported default — which is precisely why the array should maximize spatial-feature richness rather than form a pretty beam.

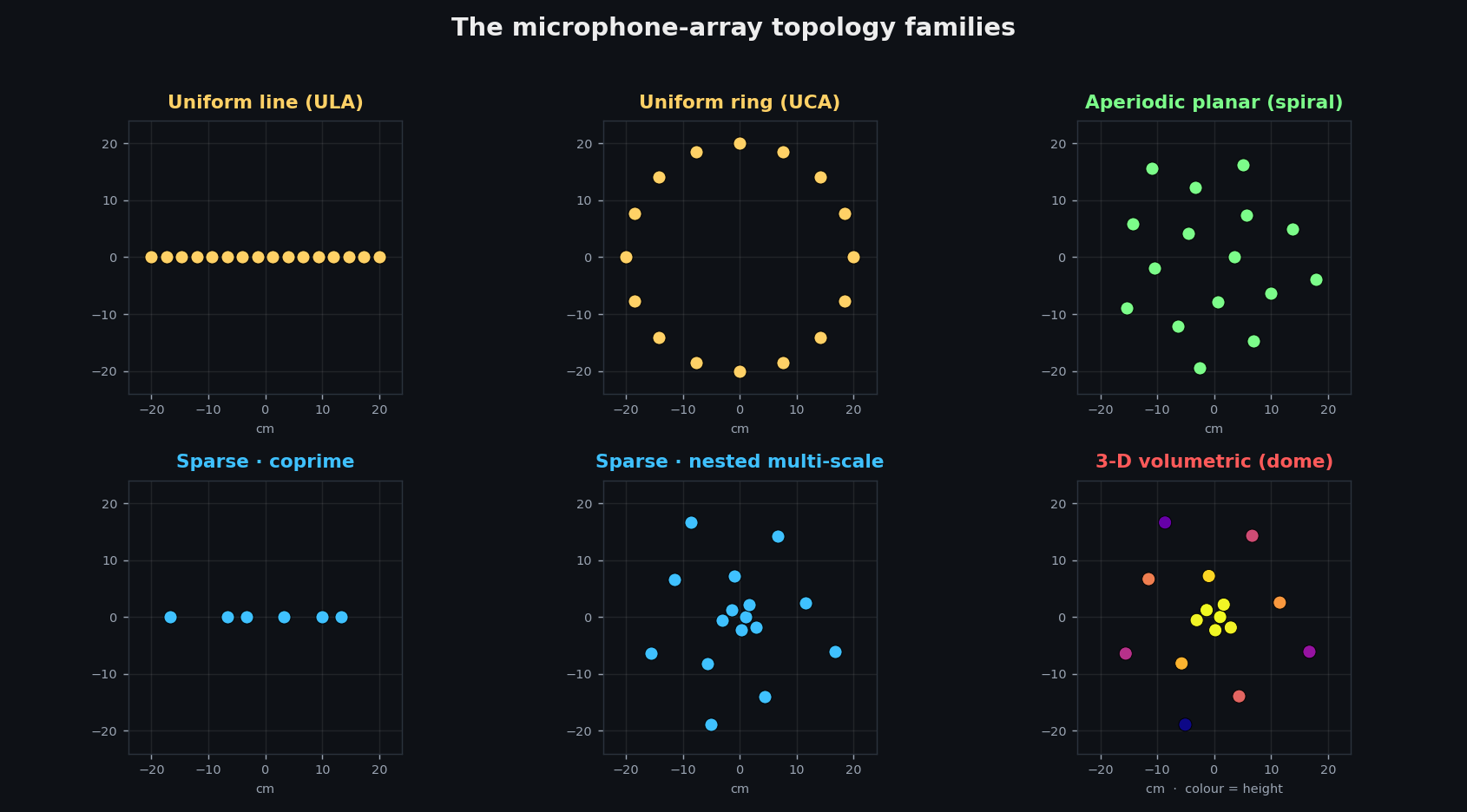

Array topologies. The geometry space is just as well mapped:

The recommendation below — a nested-aperiodic dome — is the drone-tuned intersection of those last two families: a sparse, co-array-maximizing layout lifted into 3-D, with the smallest baseline deliberately held ≤4 cm so nothing aliases inside 300–4000 Hz.

The one rule that fixes everything: λ/2

An array localizes sound by comparing the phase of a wavefront across its microphones. The catch is sampling. Just like you can't reconstruct a 10 kHz tone sampled at 5 kHz, you can't unambiguously sample a wavefront in space if your microphones are too far apart. When the spacing exceeds half a wavelength, two completely different arrival directions produce the identical set of phases at the mics — a "grating lobe." The array literally cannot tell them apart.

At our top frequency of 4 kHz the wavelength is just 8.6 cm, so the smallest spacing between microphones has to be ≤ 4.3 cm. But there's an opposing pressure: angular resolution scales with the array's aperture (its overall size) relative to wavelength. At 300 Hz the wavelength is 1.14 m, so to get any bearing resolution at the bottom of the band you want a large aperture.

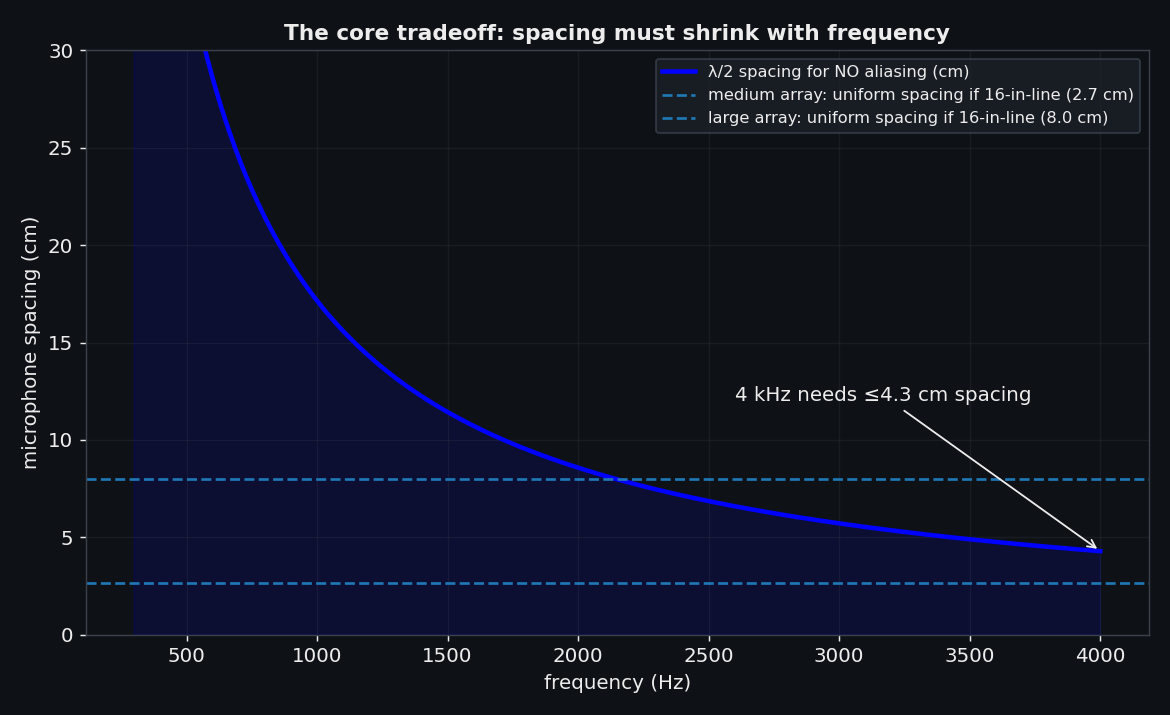

The core tradeoff: the spacing needed to avoid aliasing shrinks with frequency, while resolution wants a large aperture

Small spacing and large aperture, with only 16 microphones — you can't have both with a uniform grid. A 1.2 m line at 4.3 cm spacing would need ~28 mics. This single conflict is what drives the entire design toward non-uniform, multi-scale layouts.

How geometry shapes the response

I simulated the far-field response (a delay-and-sum beam pattern) for the usual candidates: a line (ULA), a single ring (UCA), concentric rings, a spiral, a random planar layout, and a 3-D hemispherical dome. The most important contrast is between uniform and aperiodic spacing:

A uniform ring grows sharp, discrete grating lobes at high frequency — phantom directions as loud as the real one. An aperiodic spiral, with the same 16 mics and the same aperture, smears that energy into a low, diffuse sidelobe floor instead. There are no phantom directions, just slightly raised noise.

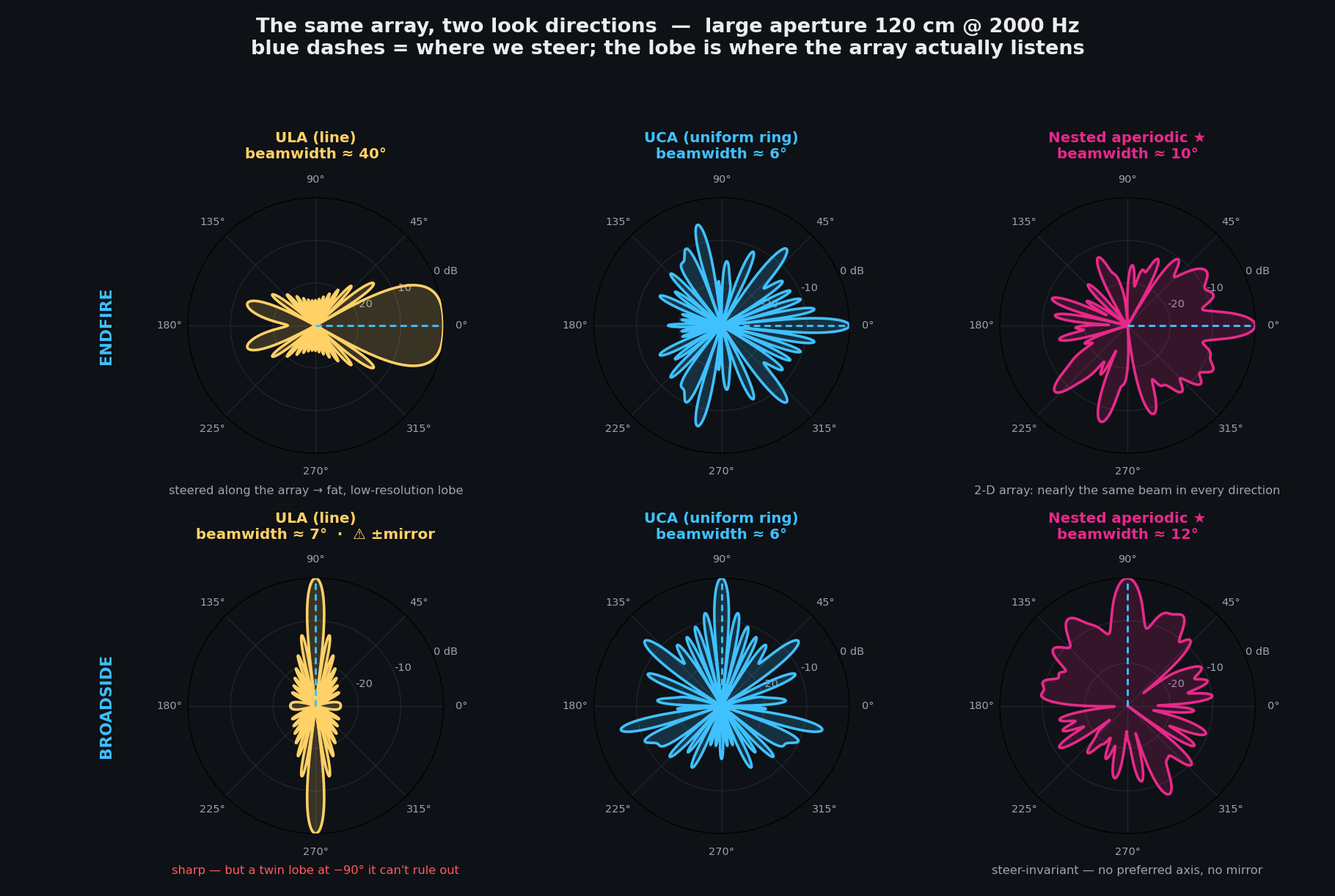

Here are the polar beam patterns across the band, live. Switch geometry, drag the frequency slider, and orbit the 3-D response "balloon" — the bulges that sprout away from the blue look-direction as you raise the frequency on the ring (UCA) are grating lobes; the nested-aperiodic dome keeps them suppressed:

The insight that matters for a 16-channel network

Here's the thing that reframed the problem for me. If you're feeding all 16 channels into a neural network (raw multichannel, or a stack of GCC-PHAT cross-correlations), you don't actually care about a textbook beam. You care about how many independent spatial measurements the geometry hands the network.

Every pair of microphones is one baseline — one time-difference / coherence cue. With 16 mics that's 120 pairs. But on a uniform ring, those 120 pairs collapse onto just 8 distinct baseline lengths — hugely redundant. An aperiodic layout spreads them across ~100 distinct baselines:

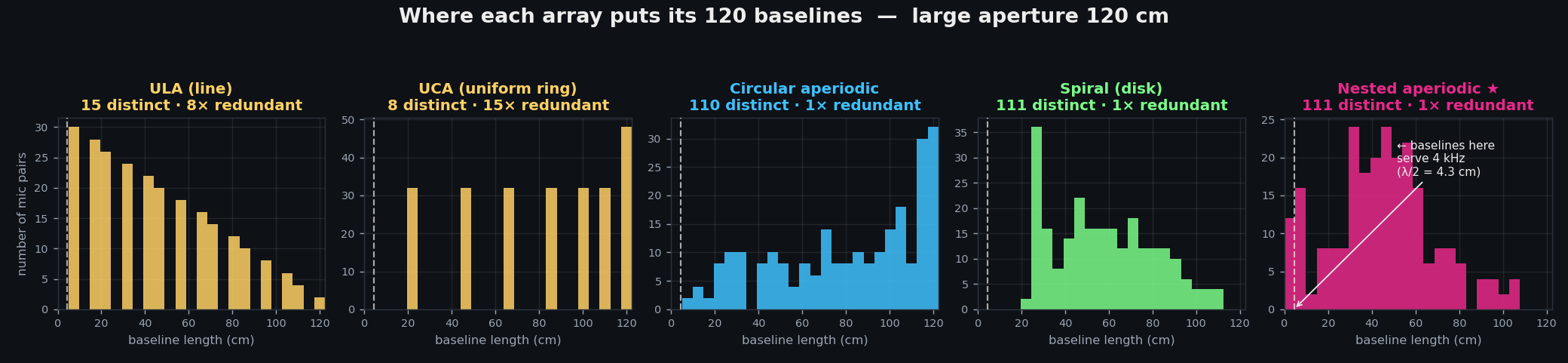

Flip between the geometries above: the UCA collapses its 120 pairs onto 8 distinct baselines (15× redundant — the cyan cloud snaps into a few rings), while the nested dome spreads them across ~95 (1.3× redundant — a full 3-D cloud). That spread is exactly the spatial information a 16-channel network feeds on.

More distinct baselines means more independent spatial features, which means easier detection and coarse bearing — without needing classical beamforming at all. This is the real reason to prefer an aperiodic array for a learned detector: discrete grating lobes are genuine ambiguities a network can't undo from a single snapshot, whereas an elevated sidelobe floor is benign and learnable.

The recommendation: a nested-aperiodic dome

Combining both pressures gives a clear winner — a multi-scale (nested) aperiodic layout: a tight central cluster of ~6 mics within a ≤4 cm radius (which keeps the minimum spacing small enough to stay alias-free up past 4 kHz), plus ~10 outrigger mics spread aperiodically out to the full aperture (which buys the low-frequency resolution). Lift the centre mics out of plane onto a shallow dome, and you also break the up/down ambiguity that every flat array suffers — which matters because FPV threats come from above.

The simulations back it up. Across both form factors, the nested design is the only layout that stays alias-free past 4 kHz and exposes 100+ distinct baselines. Here are the response curves for the large (1.2 m) array — note how the single ring (UCA) and line (ULA) collapse to near-0 dB peak sidelobes (full ambiguity) at high frequency, while the nested designs hold a clean floor and a sharp 7° beam:

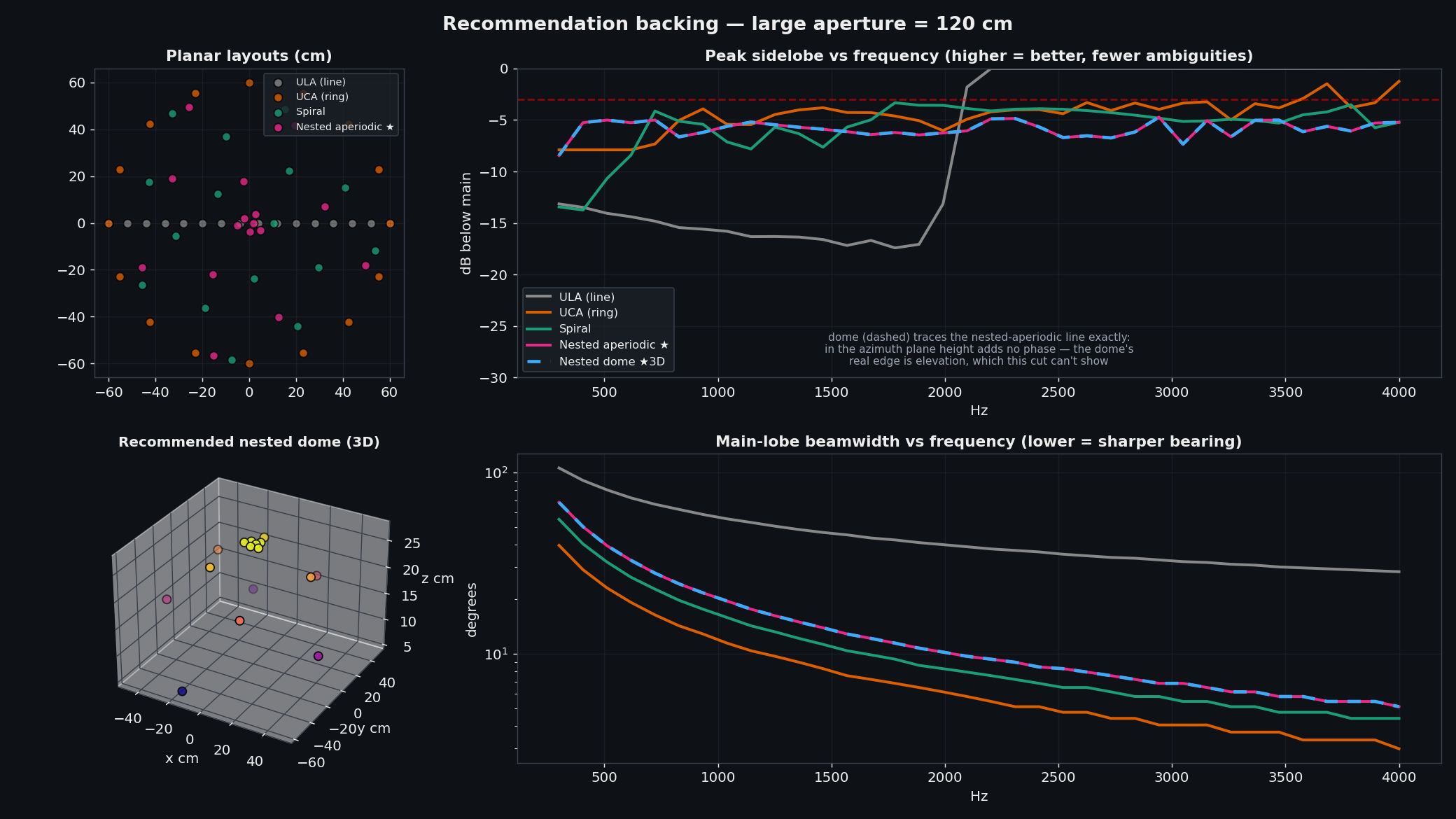

Recommendation backing for the 120 cm array: layouts, 3-D dome, peak-sidelobe and beamwidth vs frequency

I analysed two sizes:

Medium (~35–40 cm)Large (~1.0–1.2 m)
Min spacing (centre cluster)~2–4 cm~3–4 cm
Alias-free to~7.5 kHz~4.5 kHz
Beamwidth @ 3 kHz~20°~7°
Best atportability, vehicle/post mount, coarse bearinglong-range SNR, sharp low-freq bearing
Tradewider beam, shorter rangebulky; needs a rigid weatherproof frame

If the array has to be flat (a roof panel, a wall), drop the dome to a plane — you keep every broadband and diversity benefit and only lose elevation discrimination. That's the pragmatic default when a 3-D structure isn't practical.

What to avoid: the uniform single ring (UCA) and the plain line (ULA). The ring is a workhorse for narrowband DOA and shows up everywhere in the literature, but for a 300–4000 Hz broadband detector with only 16 mics it aliases over most of the band. The line is 1-D only and, at 1.2 m, fully ambiguous up high.

A few practical notes

  • You don't need beamform-then-detect. Feed raw multichannel into a CNN/CRNN, or pre-compute the 120 GCC-PHAT cross-correlations into a "spatial image" and let a small conv net classify it. Both map cleanly onto INT8 inference on Hailo or Jetson, and 120 cross-correlations is nothing for a Jetson.
  • Sample at ≥10–16 kHz to cover 4 kHz with anti-alias margin. 16 ch × 16 kHz × 16-bit is ~4 Mbit/s — trivial.
  • Calibrate. Aperiodic arrays live or die on accurate per-mic position and phase calibration — bake the measured positions into the feature extractor.
  • MEMS mics (digital I²S/PDM, phase-matched) are the obvious building block: cheap and easy to mount on a PCB dome or disk.

The whole thing — the geometry library, the response-curve simulations, and the manim animations above — is a couple hundred lines of Python. The physics is old (spatial Nyquist, aperiodic phased arrays from the acoustic-camera world); the new part is realizing that when a 16-channel network is doing the detection, the right objective isn't a pretty beam, it's baseline diversity.
